1. Overview
2. External Services Integration
3. Auto-Scaling Configuration
4. Multi-Cluster Stack
5. Private SaaS Maintenance
6. Migration from VMs or Managed Services

---

Overview

This chapter covers different approaches and scenarios for using Stacktic to solve real-world challenges. From integrating external services to managing multi-cluster deployments, these use cases demonstrate Stacktic's flexibility and power.

---

External Services Integration

Managing Services Outside the Stack

While we encourage using everything from inside the stack to create agnostic, centralized stacks, we understand that sometimes external services are preferred or required.

Integration Approaches

Option 1: Simple Environment Variables

The straightforward approach - add environment variables to your source code:

• Add S3 keys and host as ENV variables
• Your code likely already supports these ENVs
• Minimal changes required

Option 2: Dummy Components for Synchronization

For a more stack-integrated solution:

• Create dummy components with relevant attributes
• Link them to source code or components
• Automatically sync ENVs across the stack

Option 3: External Component Automation

For advanced scenarios:

• Add automation of external components using Crossplane
• Manage external resources from within Stacktic
• Maintain centralized control

Best Practices for External Services

Approach	Use Case	Complexity
ENV Variables	Simple external service connections	Low
Dummy Components	ENV synchronization across stack	Medium
Crossplane Integration	Full external resource management	High

---

Auto-Scaling Configuration

Simplified Kubernetes Auto-Scaling

Many teams fear Kubernetes auto-scaling or struggle with tuning for peaks while saving costs. Stacktic provides centralized control, resource recommendations, forecasting, and LiveView analysis recommendations.

Resource Management Options

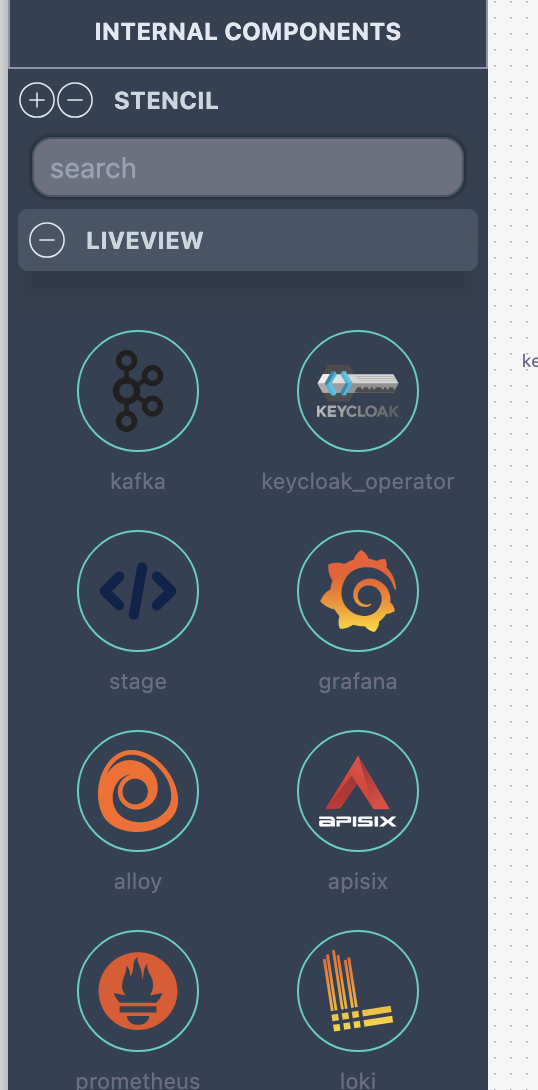

Component-Level Editing

Edit resources directly from components:

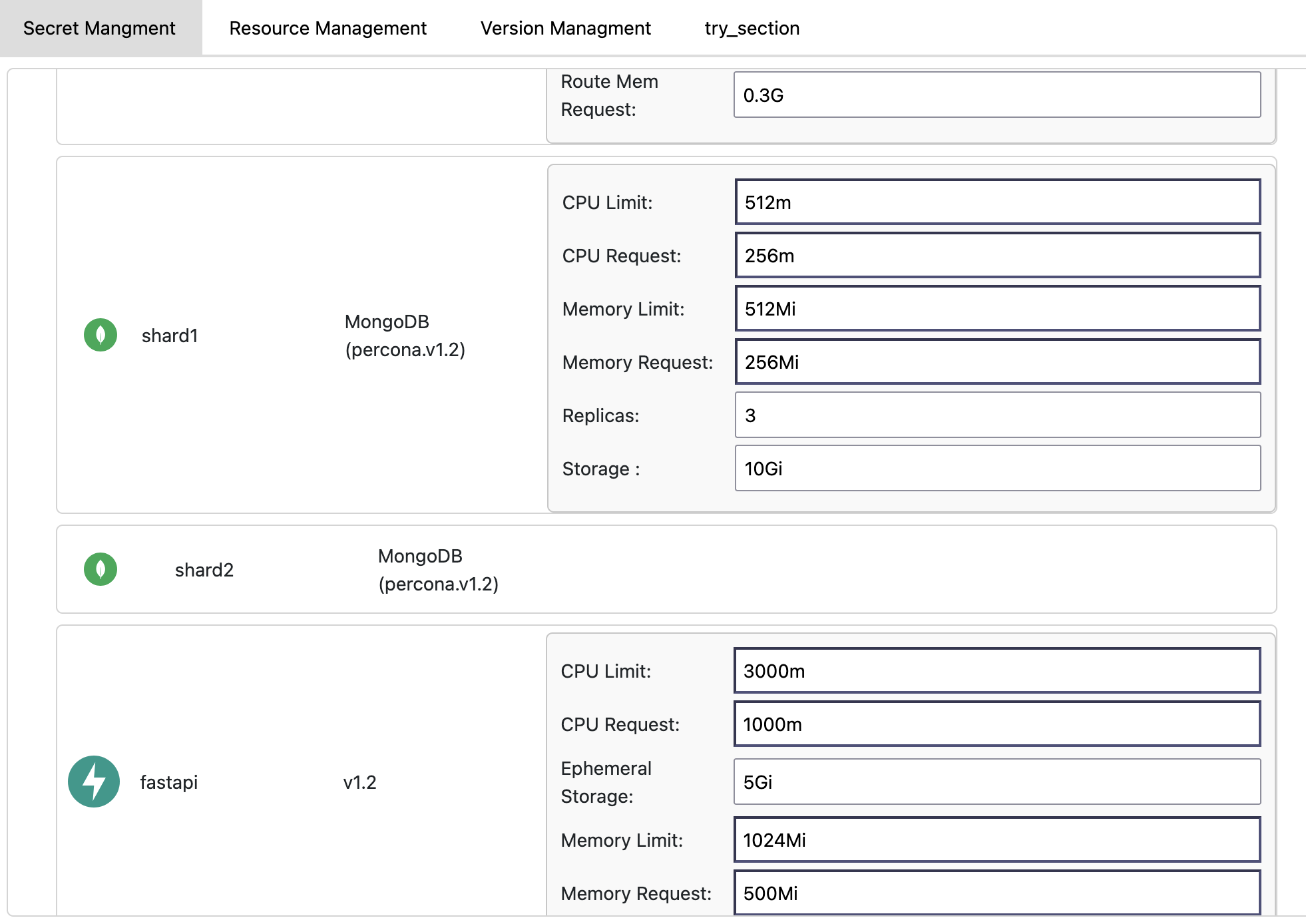

Centralized Section Control

Use sections for centralized resource management across the stack.

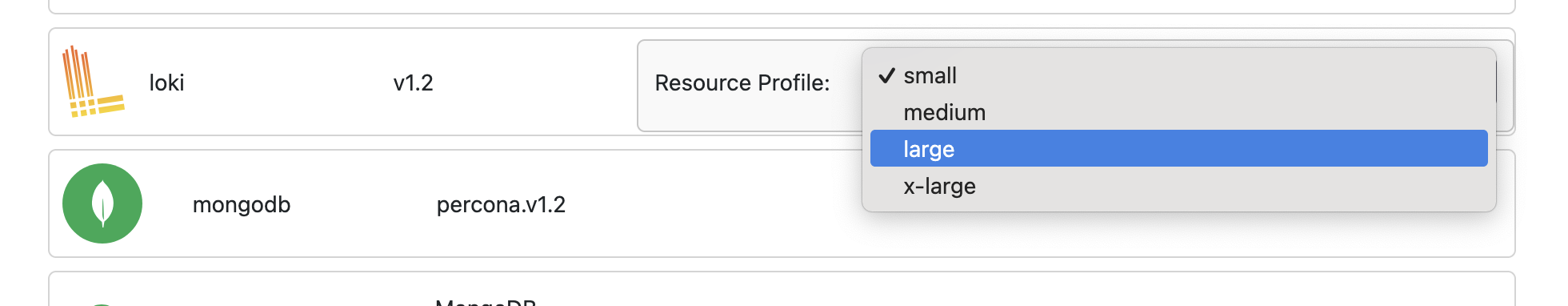

Resource Plans for Complex Services

For high-complexity services like Loki, Prometheus, or OpenSearch (which might contain 6+ different resources), Stacktic simplifies management with pre-configured plans:

Example: Loki Resource Configuration

cat k8s/deploy/base/loki/patch/resource-small.yaml
# 1) loki-backend StatefulSet
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: loki-backend
  namespace: loki
spec:
  template:
    spec:
      containers:
      - name: loki
        resources:
          requests:
            cpu: 100m
            memory: 128Mi
          limits:
            cpu: 150m
            memory: 192Mi

---
# 2) loki-read Deployment
apiVersion: apps/v1
kind: Deployment
metadata:
  name: loki-read
  namespace: loki
spec:
  template:
    spec:
      containers:
      - name: loki
        resources:
          requests:
            cpu: 100m
            memory: 128Mi
          limits:
            cpu: 150m
            memory: 192Mi

---
# 3) loki-write StatefulSet
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: loki-write
  namespace: loki
spec:
  template:
    spec:
      containers:
      - name: loki
        resources:
          requests:
            cpu: 250m
            memory: 256Mi
          limits:
            cpu: 375m
            memory: 384Mi

# ... additional components (gateway, cache, etc.)

Kustomization Configuration

cat k8s/deploy/base/loki/kustomization.yaml
resources:
  - namespace.yaml
  - loki.yaml
  - servicemonitor.yaml

labels:
  - pairs:
      stacktic.io/app: "loki"
      stacktic.io/group: "logs"
      stacktic.io/namespace: "loki"
    includeTemplates: true

patches:
  - path: patch/resource-small.yaml

Forecast Report Configuration

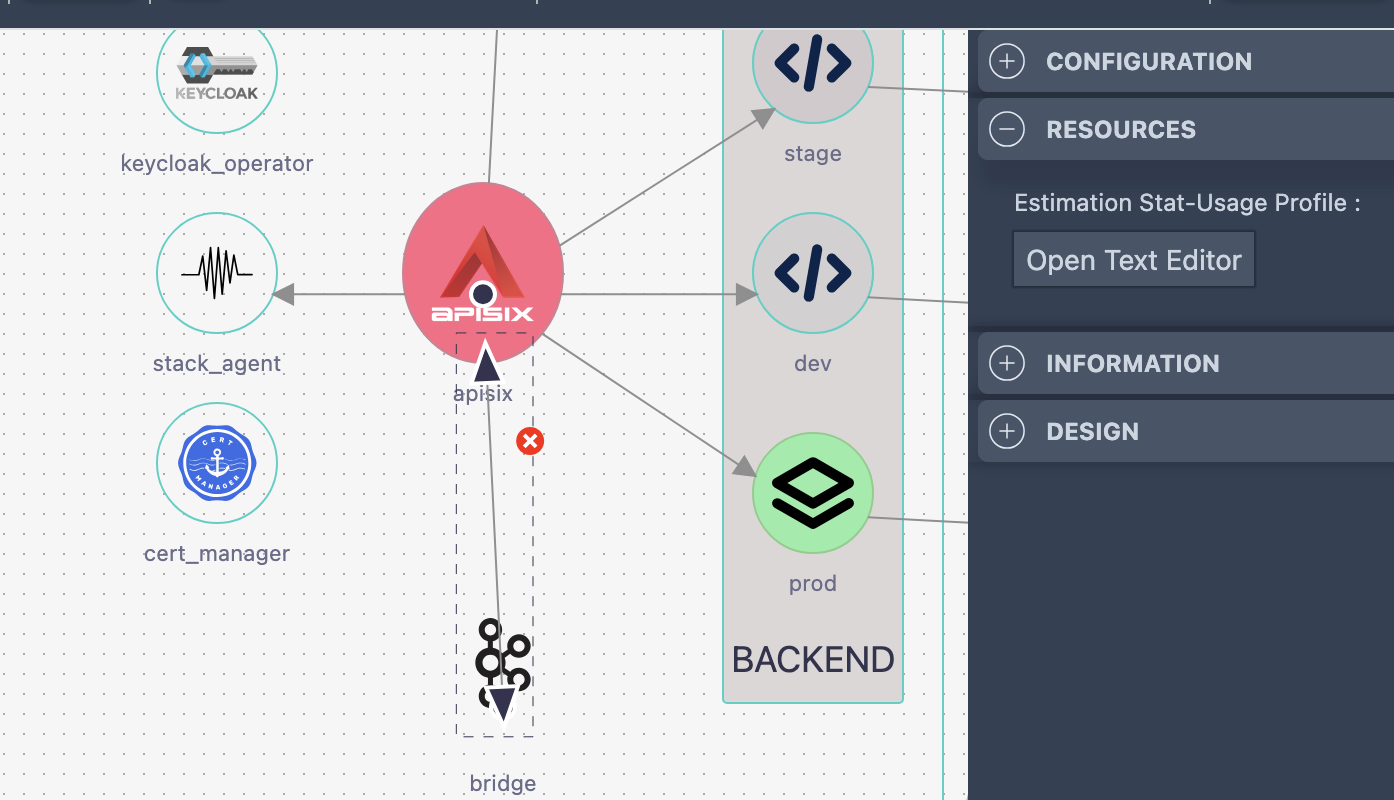

Use the estimation editor to enter your statistics for better scaling recommendations:

Example Forecast Input

expected_rps: 100
peak_rps: 400
expected_concurrent_connections: 10
peak_concurrent_connections: 60
avg_payload_size_kb: 12

This helps Stacktic's metadata engine provide better scaling understanding for the forecast report.

LiveView Real-Time Analysis

The LiveView agent can:

• Estimate resources in real-time
• Provide analysis and recommendations
• Suggest optimal scaling configurations

---

Multi-Cluster Stack

Cross-Cluster Architecture

Some customers need multi-cluster stacks where:

• API gateway connects to another cluster
• Prometheus sends metrics to centralized Prometheus
• Services span multiple clusters

While not out-of-the-box, multi-cluster stacks are technically supported and can be easily configured per customer request.

Configuration Steps

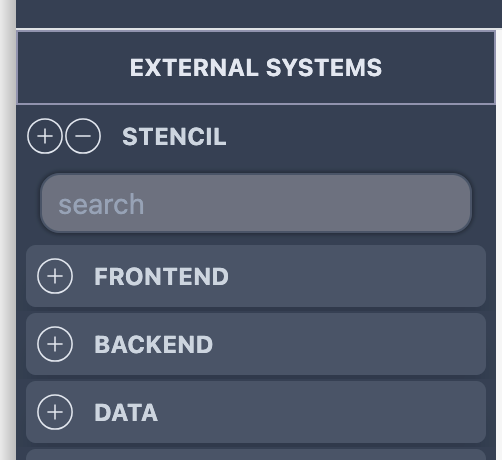

Step 1: Select External System

Choose external system from the left panel:

Step 2: Drag Components

Drag components from external system into your local stack:

Step 3: Create Cross-Stack Logic

Creating logic between stacks solves connectivity and centralization needs.

Multi-Cluster Use Cases

Scenario	Solution	Benefit
Centralized Monitoring	Connect remote clusters to central Prometheus	Single pane of glass
Distributed API Gateway	API gateway routing to multiple clusters	Load distribution
Cross-Region Services	Services spanning geographic regions	High availability

---

Private SaaS Maintenance

Managing Private Stacktic Instances

As discussed in the architecture and adoption chapters, private SaaS options are fully available. Customers using private SaaS can bypass all compliance concerns.

Upgrade Procedure

The private SaaS upgrade procedure is simple:

1. Maintain single connection to Stacktic main SaaS
2. Stacktic pushes updates of automation and new features
3. Updates applied to your private SaaS instance
4. Full control over when to apply updates

Benefits of Private SaaS

Benefit	Description
Compliance	Meet strict regulatory requirements
Control	Full control over updates and changes
Security	Air-gapped options available
Customization	Tailored to your needs

---

Migration from VMs or Managed Services

Application Migration Support

Migrating existing applications from VMs or managed services to Stacktic requires careful planning.

Migration Considerations

Not all migrations are the same. Common challenges include:

• Real production data
• Complex custom source code
• Legacy systems
• External connectors

Migration Support

We're happy to get involved and assist with migrations. We can support most use cases except:

• Monolithic to microservices conversions without significant developer assistance
• Breaking architectural changes requiring deep application knowledge

Migration Approach

Migration Type	Complexity	Stacktic Support
Lift and Shift	Low	Fully automated
Re-platforming	Medium	Assisted automation
Re-architecting	High	Consultation + automation
Legacy Modernization	Very High	Custom engagement

Getting Migration Help

For migration assistance:

1. Document your current architecture
2. Identify dependencies and integrations
3. Contact Stacktic team for assessment
4. Receive customized migration plan

---

🎯 Summary

Key Use Case Takeaways

Use Case	Solution	Complexity
External Services	ENV vars, dummy components, or Crossplane	Low to Medium
Auto-Scaling	Centralized control with forecast reports	Medium
Multi-Cluster	Cross-stack component linking	Medium to High
Private SaaS	Isolated instance with controlled updates	Low
Migration	Assisted or automated based on complexity	Variable

Stacktic Flexibility

These use cases demonstrate that Stacktic can:

• ✅ Integrate with existing infrastructure
• ✅ Scale from simple to complex deployments
• ✅ Support various compliance requirements
• ✅ Facilitate migrations and modernization
• ✅ Adapt to unique organizational needs

---

Stacktic: Solving real-world challenges with intelligent automation.
